When most people picture a foundry, they imagine molten metal being poured into a mold, a dramatic moment when intense heat, skilled craftsmanship, and precision come together to form a new casted part. At Quaker City Castings we have onsite machine shops and heat treatment facilities that produce high quality heat treated and machined castings, so we know the real craftsmanship doesn’t stop when the mold is filled, it’s just getting started.
From the moment a casting solidifies inside the mold to the final inspection before shipping, multiple critical steps transform a rough shape into a high-performance component ready to serve industries like military and defense, power generation, fluid handling, and heavy equipment. Here’s what really happens behind the scenes once a sand casting leaves the mold.
Breaking the Mold: Shakeout and Cleaning
The first step is called shakeout, the controlled removal of the sand mold from the newly solidified metal casting. Once the metal has cooled sufficiently, our team uses special tools to break apart the sand mold safely. Because the mold material is designed to disintegrate, this step leaves behind the raw casting, still coated in residual sand and surface scale.
After shakeout, the casting enters the cleaning phase. To remove the leftover sand, our technicians use high-powered blasting equipment that bombards the surface loosening stubborn particles and removing the outer oxide scale formed during solidification. This crucial step not only cleans the surface but also prepares it for inspection, trimming, and finishing.
Our foundry takes pride in reclaiming and recycling as much sand as possible. After screening and conditioning, a significant portion of this sand can be reused in future molds, supporting our sustainability goals and helping customers benefit from cost-effective production.
Removing Excess Metal
Once the casting is free of its mold, it’s time to remove any non-functional metal used to feed the mold cavity during pouring. This includes risers, gates, sprues, and runners, vital parts of the casting system that ensure the cavity fills completely but aren’t part of the final component.
At Quaker City Castings, our team uses precision saws, torches, and grinders to cut away these features with care. Heavy-duty angle grinders and finishing tools then remove any remaining excess material and flash, smoothing seams and edges to bring the casting closer to its engineered shape.
Proper cutting and grinding are more than just cosmetic, they directly affect how well a casting performs in service. Poor finishing can create stress risers or rough surfaces that interfere with sealing surfaces, bearing fits, or moving parts. While many foundries use third parties for their finishing needs Quaker City Castings completes all these steps in-house, ensuring each casting meets the highest quality standards before moving on to the next stage.
Heat Treatment: Built-In Strength and Reliability
Few steps are as crucial for many alloy castings as heat treatment. As a casting cools and solidifies, internal stresses develop due to uneven thermal contraction. Left untreated, these stresses can weaken the metal or lead to premature failure during service. Heat treatment solves this by carefully reheating and cooling the part to alter its microstructure and relieve stress.
Those of you who follow the Quaker City Castings blog will know that we are currently upgrading our heat treatment facility to accommodate both larger castings and treat higher volumes to cut down on lead times. Our new furnaces and quench tanks are built to process parts ranging from small components to massive castings weighing several tons.
Depending on the alloy and end-use, our team may apply stress-relieving cycles, normalizing, hardening, tempering, or specialized treatments like annealing for ductility or hardness. For example, steel valve bodies for high-pressure pipelines might be normalized to refine the grain structure, then tempered to balance hardness with toughness.
Having this capability on-site means faster turnaround times, strict process control, and confidence that each casting meets its mechanical property requirements before it ever reaches final machining.
Machining Castings for Precision Fit
While casting produces a near-net shape, tight tolerances and critical features almost always require precision machining. Bolt holes, sealing faces, bearing seats, or threaded ports must match exact specifications to guarantee proper assembly and leak-free operation in the field.
Quaker City Castings is unique, we maintain an in-house machining operation equipped with CNC and manual equipment capable of tackling both small, intricate details and massive castings that demand heavy-duty setups. By controlling machining internally, we eliminate the need for customers to coordinate with a third-party machine shop, reducing lead times and ensuring consistent quality from raw casting to final part.
Our skilled machinists use lathes, mills, boring mills, and drills to bring every casting to spec. Combined with our heat treatment capabilities, this integrated approach means parts arrive at your facility ready for installation, with minimal downtime and zero surprises.
Inspection: Verifying Quality at Every Step

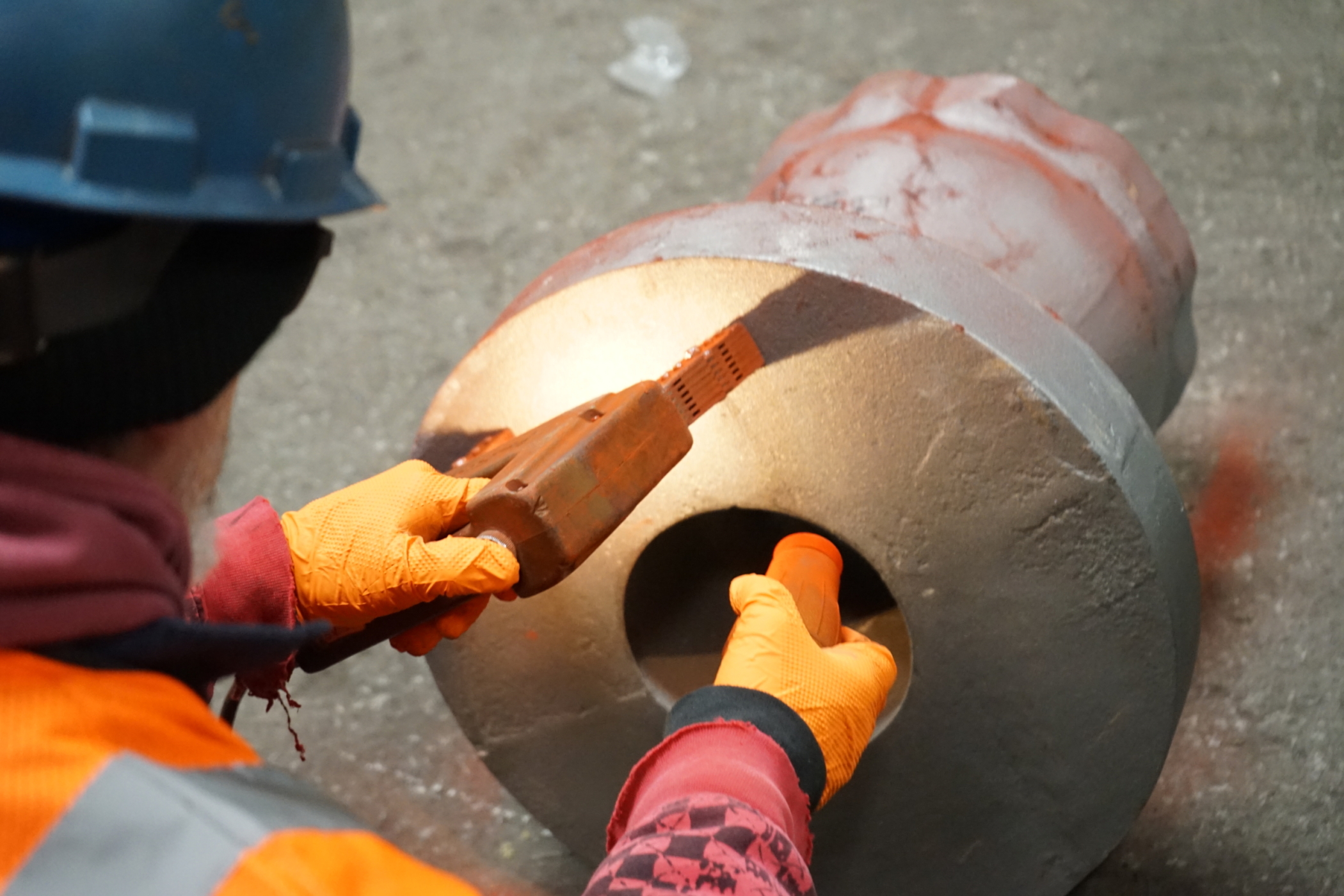

No part leaves our foundry floor without a thorough inspection. Depending on the customer’s requirements and the part’s end-use, we use various non-destructive testing (NDT) methods to uncover any hidden defects that could compromise performance. These include:
- Ultrasonic Testing (UT) to detect internal flaws like cracks or voids.
- Magnetic Particle Inspection (MPI) for surface and near-surface discontinuities.
- Dye Penetrant Inspection (DPI) for fine surface cracks.
We also check critical dimensions using precision gauges, micrometers, or coordinate measuring machines (CMMs) for complex geometries. All results are documented, traceable, and shared with our customers to ensure complete confidence that the casting meets or exceeds specifications.
Packaging and Delivery: Ready to Perform
After passing final inspection, each casting receives finishing touches like anti-corrosion coatings or protective wraps if required. Our packaging team ensures parts are securely crated and cushioned to prevent damage during transport, especially for heavy or unusually shaped components.
We know our customers depend on receiving castings that are production-ready. That’s why we take care to ship each component so it arrives in the same condition it left our floor; clean, protected, and prepared for immediate installation or assembly.
More Than Just Pouring Metal
At Quaker City Castings, we know that pouring metal into a mold is only one part of the story. What happens next the shakeout, cleaning, finishing, heat treatment, machining, inspection, and delivery, determines whether a casting performs reliably in the field or causes headaches down the line.
With our in-house heat treatment and machining facilities, we deliver end-to-end solutions that save customers time and money while delivering unmatched quality and consistency. From heavy-duty iron and steel castings to complex alloy components for critical industries, we’re proud to be more than just a foundry, we’re your full-service partner in high-performance metal casting.
Ready to experience the difference? Reach out to Quaker City Castings to learn how we can bring precision, reliability, and peace of mind to your next project.
